30 ELEC W/H MED 240V 4500W H=48 D=18.3

PART ASW ENS30T-6

SUPPLIER American Standard®

SUPPLIER PART # 50315040900

Calculating price...

QUANTITY

About this item

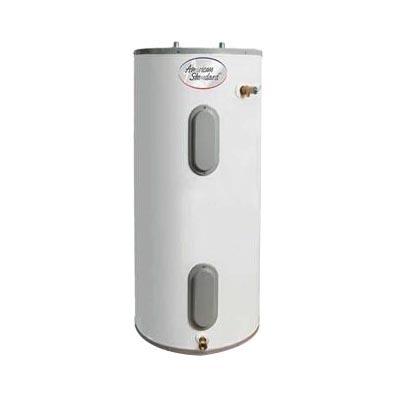

American Standard® Electric Water Heater, Light Duty, Series: EN Series, 30 gal Tank, 240 VAC, 18.75 A, 4500 W, 1 ph, 3/4 in NPT Side Water Connection, (2) Incoloy Heating Element, 0.92 Energy Factor, 10 AWG Wire, 21 gph at 90 deg F Rise Recovery, 150 psi, Tall or Short: Tall, ASME Yes/No: No, Glass Lined Steel, 20-1/4 in Dia x 51 in H

Comply with and Meets or Exceeds ASHRAE Standard 90.1 b|National Appliance Energy Conservation Act|ANSI Requirements and Tested in Accordance with D.O.E. Test Procedures|UL 174|NAECA Compliant

Amperage Rating 18.75 A

ASME Yes/No No

Dimensions 20-1/4 in Dia x 51 in H

Energy Factor 0.92

Heating Element (2) Incoloy

Material Glass Lined Steel

Phase 1

Power Rating 4500 W

Pressure Rating 150 psi

Recovery Rate 21 gph at 90 deg F Rise

Series EN Series

Tall or Short Tall

Tank Capacity 30 gal

Type Light Duty

Voltage Rating 240 VAC

Water Connection 3/4 in NPT Side

Wire Size 10 AWG

Brand American Standard®

Warranty 6 Years Limited on Tank/Limited on Parts

Surface mount thermostats - fully automatic for temperature control, factory installed manual reset energy cut-off prevents overheating

Double heating elements - dual screw-in heating elements transfer heat directly to water to conserve energy

Self-cleaning - turbulence inducing cold water inlet-tube engineered to diminish hard water area sediment deposits

Incoloy elements - are low watt density and installed into every model to operate more efficiently and last longer

Non-CFC foam insulated - saves energy and reduces fuel costs by maximizing heat retention

Heavy gauge steel tank - for extra years of trouble-free service

Glass-lined tank - inner tank glass-lined with Dura-Glas™ and fired at 1600 deg F for optimum protection from the effects of corrosion

Magnesium anode rod - to protect tank life

Factory Installed dielectric hot and cold water connections - 3 4 in NPT water connections to extend tank life and for easier installations

Brass drain valve (full port ball) - designed to allow easy draining and avoid clogging

Factory installed heat traps - reduces standby heat loss in water piping

Temperature and pressure relief valve - factory provided T and P Valve can be relocated from side to optional top opening

Catalog

Specification Sheet

Warranty Information

Service Manual
