RESETTER HORZ STYLE 5/8 X 3/4 9 HGT NL

PART AYW 718-209WX

SUPPLIER A.Y. McDonald

SUPPLIER PART # 718-209WX

Calculating price...

QUANTITY

About this item

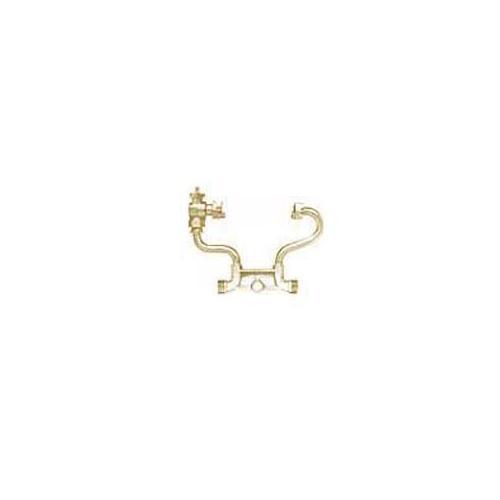

A.Y. McDonald, 718-209WX, Meter Resetter, Horizontal, Series: 718, 5/8 x 3/4 in Meter, 9 in Setter Height, Angle Lockwing Ball Inlet Valve, Flanged Tubing with Meter Nut Outlet Valve, Copper

The A.Y. McDonald 718 horizontal resetter allows you to reset a meter incorporating an inlet or outlet shut off valve or check valve while offering several height options. It also offers several options for taps to incorporate pressure relief valves or sampling valves before or after the meter. Depending on valve configurations, minimum heights may vary.

ANSI/AWWA C800|ASTM B584/B62/B75/B88|UNS C89833/C83600/C12200|NSF/ANSI 61/372

Connection Type Meter Thread

Inlet Valve Type Angle Lockwing Ball

Material Copper

Meter Size 5/8 x 3/4 in

Outlet Valve Type Flanged Tubing with Meter Nut

Series 718

Setter Height 9 in

Type Horizontal

Brand A.Y. McDonald

Lead free solder joints

Designed to provide proper meter spacing for ease of installation

Padlock wings standard on all valves

EPDM rubber gaskets are furnished as standard

All meter resetters are factory tested air under water at 85 psig

All copper meter resetters can be supplied with a test valve on the outlet tubing

Specification Sheet
