Home Pipe, Tube & Hose Fittings 1 BLACK MI 300 UNION BRZ TO BRZ SEATS

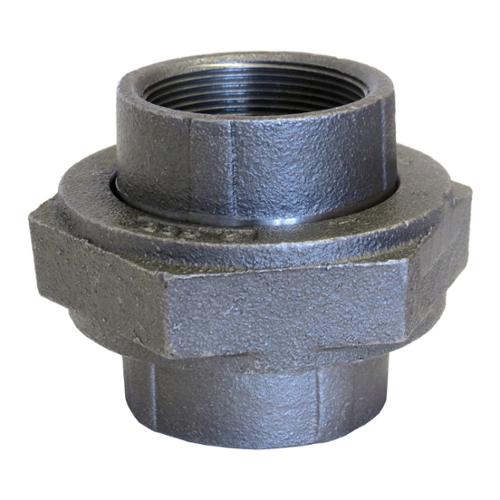

1 BLACK MI 300 UNION BRZ TO BRZ SEATS

PART BF 832-100
SUPPLIER Anvil®
SUPPLIER PART # 0312820004
Calculating price...
QUANTITY

About this item

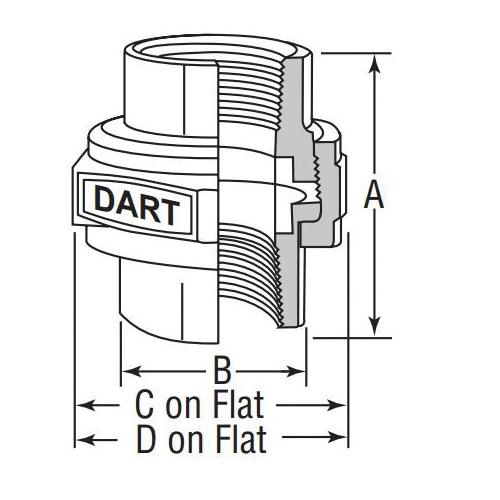

Anvil® Pipe Dart Union, Series: FIG 832, Fitting/Connector Type: Union, 1 in Nominal, FNPT, 3 in Hex, 2-5/8 in Length, 300 lb, 600 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, 1-11/16 in Dia, Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150/300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).

ASME B16.39/B1.20.1|cULus Listed|FM Approved
Dimensions 1-11/16 in Dia
Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Union
Hex Size 3 in
Length 2-5/8 in
Material Malleable Iron
Nominal Size 1 in
Pressure Class 300 lb
Pressure Rating 600 psi
Series FIG 832
Temperature Rating -20 to 150 deg F
Brand Anvil®
Country of Origin US
  • ASC offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
  • Bronze seat, on both sides of the joint resists corrosion
  • True bearing surfaces, unlike ordinary union seats
  • Bodies and nuts are high test air-refined malleable iron - generally superior to mild steel in most services
  • Can be repeatedly installed and removed
  • Straight way through, no cored parts to hold liquid or sediment
  • Extra heavy shoulder on swivel end and in the nut to stand pipe strains, vibration, and wrench abuse
  • Bronze seat ball joint with extra wide seating surfaces
