NBF-12F/LW BRZ HOT WATER CIRC FLNGD

PART BG 103260LF

SUPPLIER Bell & Gossett

SUPPLIER PART # 103260LF

Calculating price...

QUANTITY

About this item

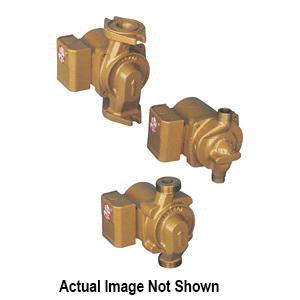

Bell & Gossett Wet Rotor Circulator Pump, Series: NBF™, 17 gpm, 12 ft Maximum Head, 55 W, 115 VAC, 0.48 A, 60 Hz, 1 ph, 150 psi Maximum, 2800 rpm Motor, In-Line Mount, 230 deg F, 4-7/8 in W x 5-9/16 in D x 6-3/8 in H

A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have 100% lead-free bronze bodies. Flanged, union and sweat models are available.

ANSI/NSF 372|cULus Listed|CSA Certified|UL Listed

Amperage Rating 0.48 A

Dimensions 4-7/8 in W x 5-9/16 in D x 6-3/8 in H

Flow Rate 17 gpm

Frequency Rating 60 Hz

Maximum Head 12 ft

Maximum Pressure 150 psi

Motor Speed 2800 rpm

Mounting Type In-Line

Phase 1

Power Rating 55 W

Series NBF™

Temperature Rating 230 deg F

Voltage Rating 115 VAC

Brand Bell & Gossett

Warranty 3 Years

100 percent lead-free bronze pump body NBF, Noryl impeller, ceramic shaft and double-sintered carbon bearings

Pumps shall be of the horizontal system lubricated type specifically designed and guaranteed for quiet operation

Pumps shall have a ceramic shaft supported by carbon bearings

Pump body shall be lead-free bronze for NBF circulators

Motor stator to be isolated from circulating fluid through use of stainless steel can

Motors shall be non-overloading at any point on the pump curve

Contains less than 0.25% lead content by weight on wetted surface

3/4, 1, 1-1/4 and 1-1/2 in NPT flange

Construction: Lead free bronze pump body, Noryl™ impeller, ceramic shaft, carbon bearings

Catalog

Specification Sheet
