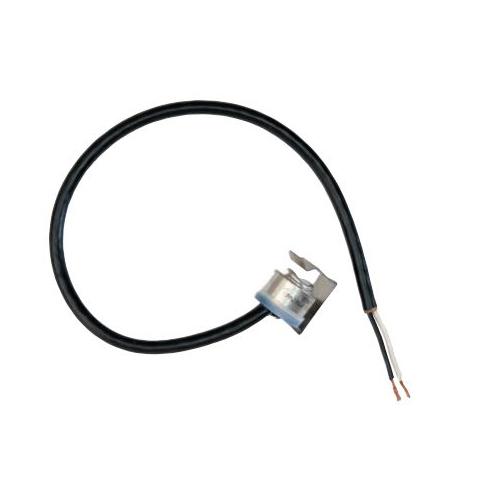

AQS-3/4 AQUASTAT FOR B&G NBF CIRCULATOR

PART BG 113224

SUPPLIER Bell & Gossett

SUPPLIER PART # 113224

Calculating price...

QUANTITY

About this item

Bell & Gossett Aquastat, Specifications: 115/120VAC 60 Hz

Designed to thermostatically turn any B and G NBF circulator ON and OFF. The AQ-1/2 or AQ-3/4 will switch the pump OFF at 120 deg F (48.9 deg C) and ON at 100 deg F (37.8 deg C). The aquastats are available in separate models that will sense the temperature for either 1/2 in or 3/4 in copper pipe.

UL Listed

Specifications 115/120VAC 60 Hz

Brand Bell & Gossett

OFF (open) at 120 deg F (48.9 deg C) water temperature and ON (closed) at 100 deg F (37.8 deg C) water temperature thermostatic switch modes

Bimetal, senses surface temperature of outside diameter of pipe thermostatic element

AQS-1/2 clips onto 1/2 in copper pipe or 3/8 in steel pipe (OD of pipe 5/8 in) and AQS-3/4 clips onto 3/4 in copper pipe or 1/2 in steel pipe (OD of pipe 7/8 in) pipe size

Mounting: May be installed to sense temperature at the suction or discharge pipe of the pump

Epoxy (Environmentally Sealed) thermostat covering

Stainless steel pipe clip

Bimetal sensing element

Insulated 18 in (457 mm) No 18 AWG wire leads

Connects to the lead wires in the connection box of any Bell and Gossett NBF/NRF/SSF circulator

Provides thermostat control to the circulator and It will turn OFF (open) at 120 deg F (48.9 deg C) water temperature and ON (closed) at 100 deg F (37.8 deg C) water temperature
