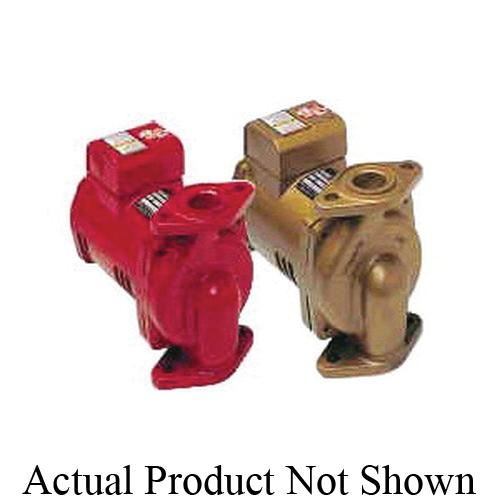

CIRC BOOSTER PUMP 1/6HP PL-45B BRZ LESS FLNGS

PART BG 1BL004LF

SUPPLIER Bell & Gossett

SUPPLIER PART # 1BL004LF

Calculating price...

QUANTITY

About this item

Bell & Gossett Close Coupled Booster Pump, Series: PL™, 50 gpm, 32 ft Maximum Head, 1/6 hp, 115 VAC, 2.1 A, 60 Hz, 1 ph, 150 psi Maximum, 3300 rpm Motor, 225 deg F, 4-1/2 in W x 9-1/8 in D x 8-1/2 in H

The series PL™ close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These in-line permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

ANSI/NSF 372|cULus Listed|CSA Certified|UL Listed

Amperage Rating 2.1 A

Dimensions 4-1/2 in W x 9-1/8 in D x 8-1/2 in H

Flow Rate 50 gpm

Frequency Rating 60 Hz

Maximum Head 32 ft

Maximum Pressure 150 psi

Motor Speed 3300 rpm

Phase 1

Power Rating 1/6 hp

Series PL™

Temperature Rating 225 deg F

Voltage Rating 115 VAC

Brand Bell & Gossett

Bell & Gossett powerful, dry-motor design delivers exceptional performance

25% more efficient than competition

Precision-machined and balanced alloy steel rotor for superior performance

Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses

XL-11™ precision-crafted bearing system

Permanently oil lubricated

Completely maintenance free

Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions

Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation

Double sided stainless steel neck ring for optimum efficiency

Contains less than 0.25% lead content by weight on wetted surface

1, 1-1/4 and 1-1/2 in NPT flange

Construction: lead free bronze booster body, stainless steel face plate, 30% glass filled Noryl™ impeller, carbon steel shaft, stainless steel shaft sleeve, carbon on silicon carbide mechanical seal, ODP motor, EPDM elastomers

Catalog

Specification Sheet
