2 ELEC W/H POU 120V 15KW H=12.25 D=9.875

PART BWC RE1-2U6

SUPPLIER Bradford White®

SUPPLIER PART # RE12U6-1NAL

Calculating price...

QUANTITY

About this item

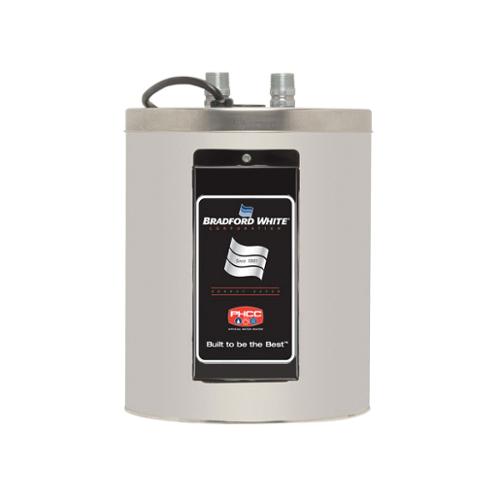

Bradford White® Powerful Compact® Electric Water Heater, Utility, Series: RE12U6, 2 gal Tank, 120 VAC, 1.5 kW Power, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 7 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 9-15/16 in Dia x 12-1/4 in H Dimensions, Domestic

Bradford White Powerful Compact® 2 Gallon Residential Electric Utility Water Heater. 6-Year Tank Warranty, 1.5 kW, 120 Volts, Single Phase.

ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|Massachusetts Approved|NSF 372|UL 1453|UL 174|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

ASME Yes/No No

Dimensions 9-15/16 in Dia x 12-1/4 in H

Domestic/Import Domestic

Heating Element Screw-In Copper

Material Steel

Phase 1

Power Rating 1.5 kW

Pressure Rating 150 psi

Recovery Rate 7 gph

Series RE12U6

Tank Capacity 2 gal

Type Utility

Voltage Rating 120 VAC

Water Connection 3/4 in NPT

Brand Bradford White®

Country of Origin US

Warranty 6 Years Limited on Tank/6 Years Limited on Component Parts

Compact design: Can be mounted almost anywhere: under a sink, inside cabinets or hung on a wall and is perfect for wash station applications

Fully automatic thermostat control: Fast acting surface-mount thermostat for automatic temperature control

Factory installed sensitive manual reset energy cut-off for safety to prevent overheating

Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style

Vitraglas® lining

Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F

Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and ease installation

Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service

Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining

Steel jacket: With special coating that inhibits rust and corrosion

Non-simultaneous operation

Specification Sheet

Instruction/Installation Manual

Catalog

Warranty Information
