Home Water Heaters Residential Residential Electric Tank Water Heaters 19 ELEC W/H UTILITY 120V 1.5KW H=24.75 D=18

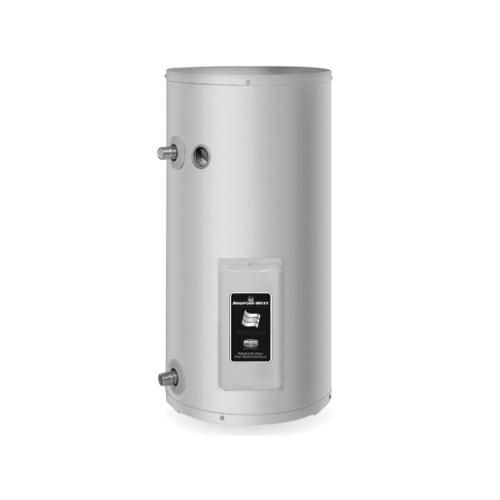

19 ELEC W/H UTILITY 120V 1.5KW H=24.75 D=18

PART BWC RE120U6
SUPPLIER Bradford White®
SUPPLIER PART # RE120U6
Calculating price...
QUANTITY

About this item

Bradford White® Electric Water Heater, Utility, Series: RE120L6, 19 gal Tank, 240 VAC, 1500 W, 1 ph, 3/4 in NPT Water Connection, 7 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 18 in Dia x 24-3/4 in H

These compact models are, as the name implies, utility water heaters that provide smaller volumes of hot water where usage is intermittent or demand is lower.

AHRI Certified|ASHRAE 90.1 b|CEC Listed|CSA C191.1-M90|cETLus Listed|NAECA Compliant
ASME Yes/No No
Dimensions 18 in Dia x 24-3/4 in H
Material Steel
Phase 1
Power Rating 1500 W
Pressure Rating 150 psi
Recovery Rate 7 gph at 90 deg F Rise
Series RE120L6
Tank Capacity 19 gal
Type Utility
Voltage Rating 240 VAC
Water Connection 3/4 in NPT
Brand Bradford White®
Warranty 6 or 10 Years Limited Tank and Component Parts
  • Fully automatic thermostat control - Fast acting surface-mount thermostat for automatic temperature control
  • Factory installed sensitive manual reset energy cut-off for safety to prevent overheating
  • Direct heat transfer with a single immersed element - Transfers heat directly and efficiently to the water
  • Vitraglas® lining - Bradford White® tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • 1 in non-CFC foam insulation - covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connections - 3/4 in NPT factory-supplied true dielectric fittings extend water heater life
  • Located on the side for easier installation (Fittings packaged separately inside carton)
  • Protective magnesium anode rod - Provides added protection against corrosion for long-term, trouble free service
  • Design evaluated by ETL in accordance with Part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency
