30 ELEC W/H MED 240V 4.5KW H=47 D=20

PART BWC RE330S6

SUPPLIER Bradford White®

SUPPLIER PART # RE330S6-1NCWW

Calculating price...

QUANTITY

About this item

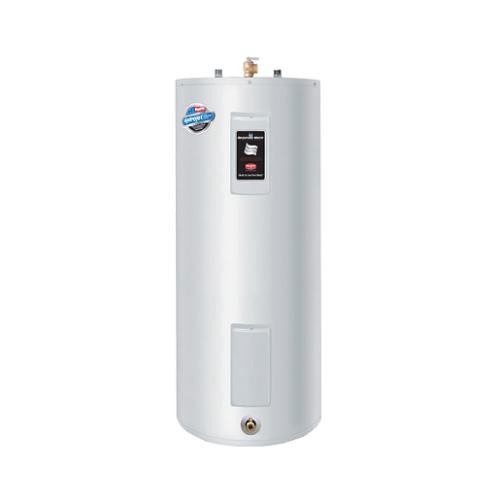

Bradford White® Electric Water Heater, Upright, Series: RE330S6, 30 gal Tank, 208 VAC, 4.5 kW Power, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 0.92 Energy Factor, 21 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 20 in Dia x 47.755 in H Dimensions, Domestic

Bradford White 30 Gallon Upright Standard Residential Electric Water Heater. 6-Year Tank Warranty, 4.5/3.5 kW, 240/208 Volts, Single Phase.

AHRI Certified|CEC Listed|CSA Certified|ETL Listed|Massachusetts Approved|NSF 372|UL 1453|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

ASME Yes/No No

Dimensions 20 in Dia x 47.755 in H

Domestic/Import Domestic

Energy Factor 0.92

Heating Element Screw-In Copper

Material Steel

Phase 1

Power Rating 4.5 kW

Pressure Rating 150 psi

Recovery Rate 21 gph

Series RE330S6

Tank Capacity 30 gal

Type Upright

Voltage Rating 208 VAC

Water Connection 3/4 in NPT

Brand Bradford White®

Country of Origin US

Warranty 6 Years Limited on Tank/6 Years Limited on Component Parts

Fully automatic thermostat control: Fast acting surface-mount thermostat for automatic temperature control

Low restriction brass drain valve: Durable tamper proof design

Direct heat transfer with a single immersed element: Transfers heat directly and efficiently to the water

Screw-in style element

Factory installed hydrojet® total performance system: Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank

Vitraglas® lining

Non-CFC foam insulation: Covers the sides and top of the tank, reducing the amount of heat loss

Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation

Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation

Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service

Non-simultaneous operation indicates when one element is being heated at a time

Design evaluated by ETL in accordance with part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency

Warranty Information

Service Manual

Line Drawing

Specification Sheet

Instruction/Installation Manual
