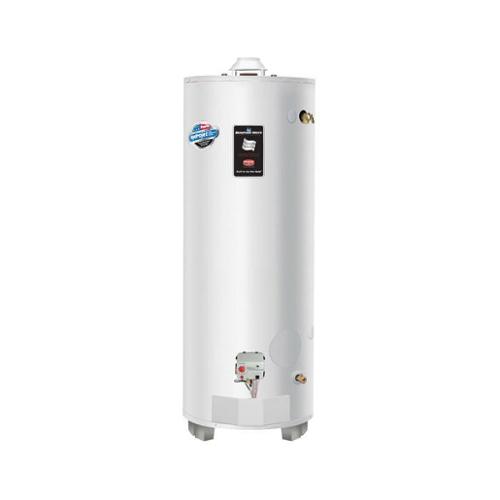

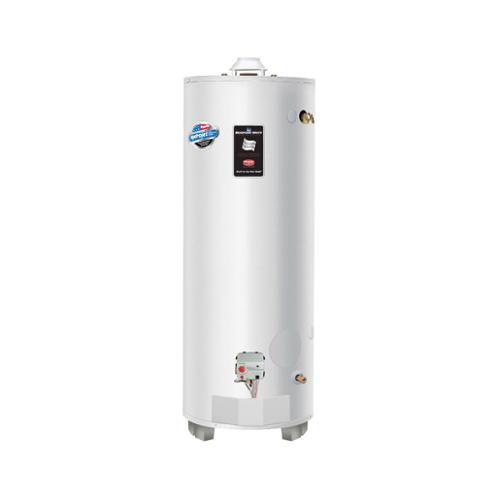

75 NAT GAS W/H HI BTU TALL H=62.675 D=26 V=4

PART BWC RG275H6N

SUPPLIER Bradford White®

SUPPLIER PART # RG275H6N

Calculating price...

QUANTITY

About this item

Bradford White® Gas Water Heater, High Input, 76000 Btu/hr Heating, Natural Gas Fuel, 1/2 in Gas Connection, 75 gal Tank, Piezo Ignition, Atmospheric Vent, 4 in Vent, 82 gph Recovery Rate, 0.59 Energy Factor, 1 in NPT Water Connection, 150 psi Pressure, Ultra Low Nox: No, 26 in Dia x 29-1/2 in D x 62-5/8 in H Dimensions, Domestic

Bradford White 75 Gallon High Input Residential Gas (Natural) Atmospheric Vent Water Heater. 6-Year Tank Warranty, 76,000 BTU/Hr.

AHRI Certified|ANSI Z21.10.3-2015|CEC Listed|CSA 4.3-2015|CSA LLC - Low Lead Compliant|Massachusetts Approved|NSF 372|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Dimensions 26 in Dia x 29-1/2 in D x 62-5/8 in H

Domestic/Import Domestic

Energy Factor 0.59

Fuel Type Natural Gas

Gas Connection 1/2 in

Heating Capacity 76000 Btu/hr

Ignition Type Piezo

Pressure Rating 150 psi

Recovery Rate 82 gph

Tank Capacity 75 gal

Type High Input

Ultra Low NOx No

Vent Size 4 in

Vent Type Atmospheric

Water Connection 1 in NPT

Brand Bradford White®

Country of Origin US

Warranty 6 Years Limited on Tank/6 Years Limited on Component Parts

Bradford White® ICON System™: Intelligent gas control with proven millivolt powered technology and built-in piezo igniter off the shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor, no need for external electricity

Enhanced performance: Proprietary algorithms provide enhanced first hour delivery rating and tighter temperature differentials

Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels

Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting

Pilot on indication: Flashing green led provides positive indication that pilot is on

Separate immersed thermowell: High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve

Factory installed Hydrojet® total performance system

Vitraglas® lining

Side connect model: 3/4 in NPT tapping's that allow easy connections for space heating applications

Insulation system: Non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity

Pedestal base

Water connections: Factory installed true dielectric fittings extend water heater life and simplify water line connections

Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service

Low restriction brass drain valve: Durable tamper proof design

NOx emission: Less than 40 ng/J

Specification Sheet

Instruction/Installation Manual

Warranty Information

Line Drawing
