Home Water Heaters Residential Residential Gas Tank Water Heaters 75 NAT GAS PWR DIR VENT W/H H=62.75 D=26 V=3OR4

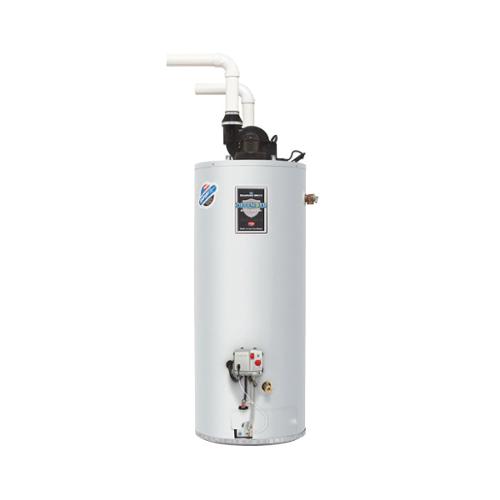

75 NAT GAS PWR DIR VENT W/H H=62.75 D=26 V=3OR4

PART BWC RG2PDV75H6N
SUPPLIER Bradford White®
SUPPLIER PART # RG2PDV75H6N
Calculating price...
QUANTITY

About this item

Bradford White® Defender Safety System® Gas Water Heater, 80000 Btu/hr Heating, Natural Gas Fuel, 1/2 in Gas Connection, 75 gal Tank, Pilot Ignition, Direct/Power Vent, 3 x 4 in Vent, 86 gph Recovery Rate, 0.69, 3/4 in NPT Water Connection, 150 psi Pressure, No Ultra Low NOx, 26 in Dia x 35-3/8 in D x 70 in H, Domestic

Bradford White 75 Gallon High Input Residential Gas (Natural) Power Direct Vent Water Heater. 6-Year Tank Warranty, 80,000 BTU/Hr., 120 Volts, Single Phase, with Power Cord included.

AHRI Certified|ANSI Z21.10.1|ANSI Z21.10.3-2015|ASHRAE 90.1b|CEC Listed|CSA 4.3-2015|CSA International (Formerly AGA/CGA)|CSA LLC - Low Lead Compliant|Massachusetts Approved|NAECA Compliant|NSF 372|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Dimensions 26 in Dia x 35-3/8 in D x 70 in H
Domestic/Import Domestic
Energy Factor 0.69
Fuel Type Natural Gas
Gas Connection 1/2 in
Heating Capacity 80000 Btu/hr
Ignition Type Pilot
Pressure Rating 150 psi
Recovery Rate 86 gph
Tank Capacity 75 gal
Ultra Low NOx No
Vent Size 3 x 4 in
Vent Type Direct/Power
Water Connection 3/4 in NPT
Brand Bradford White®
Country of Origin US
Warranty 6 Years Limited on Tank/6 Years Limited on Component Parts
  • EnergyStar® qualified: Some models meet or exceed requirements for EnergyStar® per the latest EnergyStar® criteria revision, as well as most utility rebate programs
  • Bradford White® ICON System™: Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during stand-by periods (120 VAC)
  • Enhanced performance: Proprietary algorithms provide enhanced first hour delivery rating and tighter temperature differentials
  • Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
  • Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
  • Pilot on indication: Flashing green led provides positive indication that pilot is on
  • Separate immersed thermowell: High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
  • Closed combustion venting system: Power direct vent models are ideal for installations which lack sufficient are for combustion, such as new construction homes or additions which are tightly insulated, these models use a twin pipe system where combustion air is drawn from outside the building in one pipe, and combustion products are expelled to the outside in another pipe
  • Cast aluminum air intake boot: A cast molded air intake boot design provides exceptional durability during installation and operation
  • Horizontal and vertical venting: PVC, ABS, or CPVC, the equivalent feet of intake venting cannot be greater than the equivalent feet of exhaust venting
  • Flammable vapor sensor: Electronic sensor prevents burner operation if flammable vapors are detected
  • Factory installed Hydrojet® total performance system: Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
  • Vitraglas® lining
  • Insulation system: 2 in non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies, and jacket rigidity
  • Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Side connections: 3/4 in NPT tapping's allow easy connections for space heating applications
  • Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
  • Low restriction brass drain valve: Durable tamper proof design
  • NOx emission: less than 40 ng/J
