Home Pipe Flanges Blind Flanges Cast Iron Blind Flanges BLIND FLG BLK CI 2-1/2 X 7

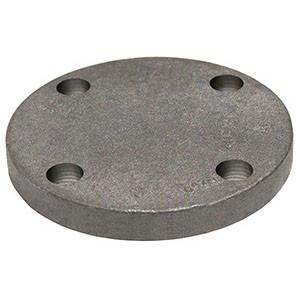

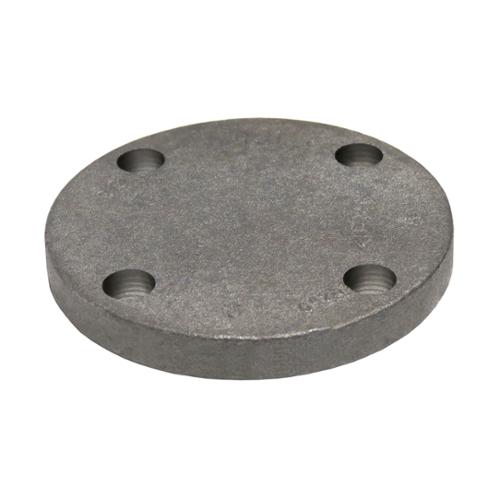

BLIND FLG BLK CI 2-1/2 X 7

PART CBF 1018 250
SUPPLIER Anvil®
SUPPLIER PART # 0308016203
Calculating price...
QUANTITY

About this item

Anvil® Blind Flange, Series: FIG 1018, 2-1/2 in Nominal, 11/16 in Thickness, 7 in Outside Dia, 200 psi, 125 lb, SCH 40/STD, -20 to 450 deg F, Cast Iron, Black Oxide, Domestic

Class 125 (standard) iron flanges are manufactured to American National Standard ASME B16.1 except as noted. Class 125 iron flanges are available in both black painted and galvanized.

ASTM A126|cULus Listed|FM Approved
Domestic/Import Domestic
Finish Black Oxide
Material Cast Iron
Nominal Size 2-1/2 in
Outside Diameter 7 in
Pressure Class 125 lb
Pressure Rating 200 psi
Schedule Rating SCH 40/STD
Series FIG 1018
Temperature Rating -20 to 450 deg F
Thickness 11/16 in
Brand Anvil®
Country of Origin US
  • Blind flanges allow the user to cap the end of a flanged line
