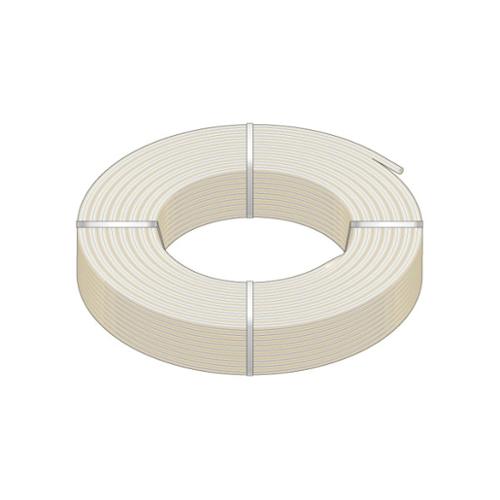

HeatLink® Plus Potable Water Tubing, UV Stabilized, Series: 20000, 1 in Nominal, 0.862 in Inside Dia, 1-1/8 in Outside Dia, 100 ft Coil Length, 1/8 in Wall Thickness, 100 psi Working, 180 deg F, Engel/Peroxide, Natural/Blue, Import

High molecular crosslinked polyethylene (PEX) with minimum bending radius of 6X the diameter at 68 deg F (20 deg C). Maximum operating temperature 180 deg F at 100 psi (82 deg C at 7 bar). Blue printing for identification of cold water lines. The PureLink® Plus PEX-a tubing may be used with fittings that are compliant with ASTM F1807/F1960/F2080/F2098/F2159 standards.

ANSI/AWWA C904|ANSI/NSF-61|ANSI/NSF-14|ANSI/NSF-372|ANSI/UL 263|ASTM F876|ASTM F877|ASTM F1807|ASTM F1960|ASTM F2023|ASTM F2080|ASTM F2098|ASTM F2159|ASTM F2657|ASTM E84|CAN/ULC S101|CAN/ULC S102.2- 2007/2010|CSA B137.5 Listings|cNSF®us-pw-G-PEX 5106|NSF U.P. Code|ICC-ES|ICC-PMG|PPI TR-4|CSA B137.5 Potable|Intertek - ASTM E84 and CAN/ULC S102.2
