120T GLOBE VLV 125# BRZ PTFE SEAT 2 NPT LF

PART CONB 33LF-138-01

SUPPLIER Apollo™

SUPPLIER PART # 33LF13801

Calculating price...

QUANTITY

About this item

Apollo™, 33LF13801, Globe Valve, Series: 120T-LF, 2 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 49 gpm Flow Rate, Media: Water, Handwheel Actuator, 8.43 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 5.72 in L Dimensions, Domestic

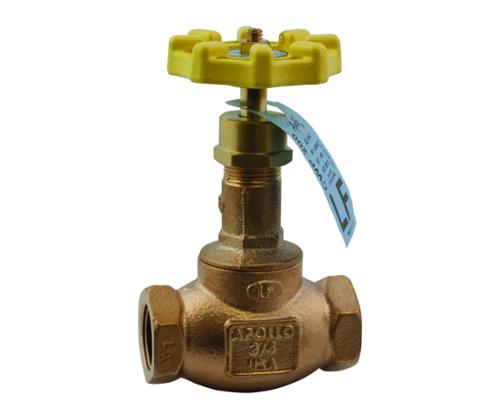

The lead free Apollo™ Model 120T-LF (33 Series) Globe Valve provides a reliable, long lasting Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials.

ANSI 3rd Party Approved and Listed|ARRA Compliant|ASME B1.20.1|ASTM B21 UNS C46400 Stem|ASTM B584 C89836 Body|Complies with Federal Public Law 111-380|CRN 0C14667.5|MSS SP-80|MSS SP-139|NSF/ANSI 61/372|PROP65: Cancer and Reproductive Harm

Actuator Type Handwheel

Body Material Bronze

Dimensions 5.72 in L

Domestic/Import Domestic

End Style NPT

Flow Rate 49 gpm

Media Water

Nominal Size 2 in

Pressure Class 125 lb

Pressure Rating 200 psi CWP

Series 120T-LF

Softgoods Material Graphite/Grafoil

Temperature Rating -20 to 406 deg F

Top to Inlet Center 8.43 in Open

Trim Material PTFE/Brass

Brand Apollo™

Country of Origin US

Warranty 5 Years

Optimum flow capacity

Screw-in bonnet

Malleable iron rugged hand wheel

Back seat protection

PTFE seat and disc/brass stem

Graphite stem packing/Grafoil packing

Warranty Information

Specification Sheet

Owners/User Manual
