Home Valves & Actuators Check Valves & Backflow Preventers Swing Check Valves 164T SWING CHK VLV 150# BRZ BDY THD 1-1/4in

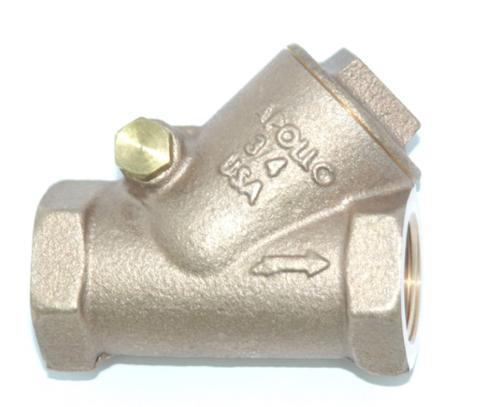

164T SWING CHK VLV 150# BRZ BDY THD 1-1/4in

PART CONB 61Y-216-01
SUPPLIER Apollo™
SUPPLIER PART # 61Y21601
Calculating price...
QUANTITY

About this item

Apollo™, 61Y21601, Swing Check Valve, Y-Pattern, Series: 164T, 1-1/4 in Nominal, NPT End Style, 300 psi CWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, No Low Lead Compliance, 39 gpm Flow Rate, Media: Steam, 4.5 in Inlet to Outlet Length, Bronze Body, 2.99 in H Dimensions, Domestic

The Apollo™ Model 164T (61Y Series) Swing Check provides a cost effective Made in the USA alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ swing check can be installed in either horizontal or vertical line with upward flow.

ARRA Compliant|ASME B1.20.1|ASTM B62 Body/Seat|Canadian Registration# 0C14667.5|MSS SP-80 Bronze Gate, Globe and Check Valve|PROP65: Cancer and Reproductive Harm
Body Material Bronze
Dimensions 2.99 in H
Domestic/Import Domestic
End Style NPT
Flow Rate 39 gpm
Inlet to Outlet Length 4.5 in
Low Lead Compliance No
Media Steam
Nominal Size 1-1/4 in
Pressure Class 150 lb
Pressure Rating 300 psi CWP
Series 164T
Temperature Rating -20 to 406 deg F
Trim Material Bronze
Type Y-Pattern
Brand Apollo™
Country of Origin US
Warranty 5 Years
  • Dezincification resistant
  • 100% factory tested per MSS
  • 100% cast, machined and assembled in the US
