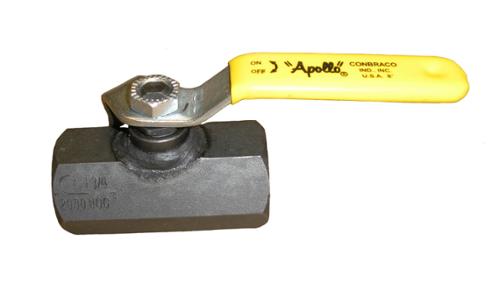

1 1/4 CS BALL VALVE ECONOMY

PART CONB 93-106-01

SUPPLIER Apollo™

SUPPLIER PART # 9310601

Calculating price...

QUANTITY

About this item

Apollo™, 9310601, Ball Valve, Uni-Body, Series: 93-100, 1-1/4 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Reduced Port, Media: Gas/Water, 0.81 in Orifice, Lever Handle Actuator, 3.62 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, RPTFE/Zinc Plated Carbon Steel Trim, MPTFE Softgoods, Domestic

ASTM A08 Ball/Retainer/Gland Nut/Stem|MSS SP-110|PROP65: Cancer and Reproductive Harm

Actuator Type Lever Handle

Ball Material Chrome Plated Carbon Steel

Body Material Carbon Steel

Domestic/Import Domestic

End Style FNPT

Inlet to Outlet Length 3.62 in

Media Gas/Water

Nominal Size 1-1/4 in

Orifice Size 0.81 in

Port Type Reduced

Pressure Rating 1500 psi CWP

Series 93-100

Softgoods Material MPTFE

Top to Inlet Center 2.09 in

Trim Material RPTFE/Zinc Plated Carbon Steel

Type Uni-Body

Brand Apollo™

Country of Origin US

Warranty 5 Years

Uni-body barstock steel design

Reinforced seat and seal

Blow-out proof stem design

Adjustable packing gland

Compact

Zinc phosphate corrosion protection

Cold non-shock body rating

Zinc plated steel lever handle with vinyl grip

RPTFE seat and zinc plated carbon steel stem

Warranty Information

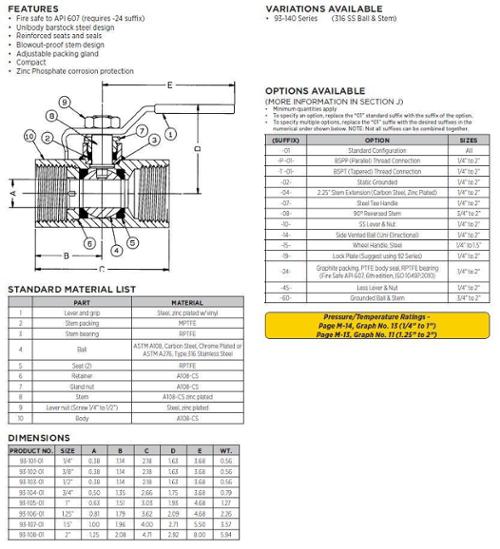

Specification Sheet

Owners/User Manual
