FORD Tapping Sleeve, Series: Style FTSS, 6 in Nominal, SCH 10, 250 psi, 5/8 in Bolt, 304 Stainless Steel Bolt, Stainless Steel Clamp, Buna-N Gasket, 15 in L

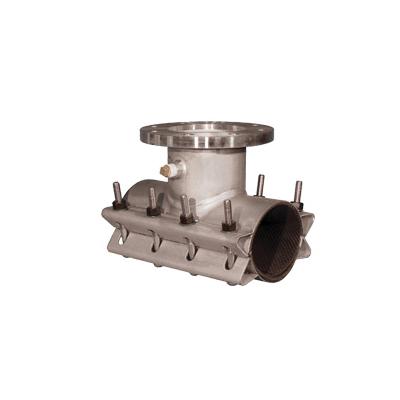

FORD FTSS tapping sleeves have a heavy gauge stainless steel body with removable bolts. A gridded gasket surrounds the pipe and not only cushions the pipe during the tap, but also helps prevent pipe breaks. The flange outlet is welded inside and out. FTSS tapping sleeves are chemically passivated to ensure maximum corrosion protection.
AWWA C228/C223|ASTM D2000|ASTM A36|ANSI 150|UL Listed to ANSI/NSF 61|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Bolt Material
304 Stainless Steel
Bolt Size
5/8 in
Clamp Material
Stainless Steel
Dimensions
15 in L
Gasket Material
Buna-N
Hole Diameter
7 in
Nominal Size
6 in
Pressure Rating
250 psi
Schedule Rating
SCH 10
Series
Style FTSS
Brand
FORD
Warranty
1 Year
Body, straps and UNC threaded bolts are made of 18-8 304 stainless steelFlange can be either stainless steel or ASTM A36 carbon steelAll sleeves are fully passivated for corrosion resistance7 in OD
