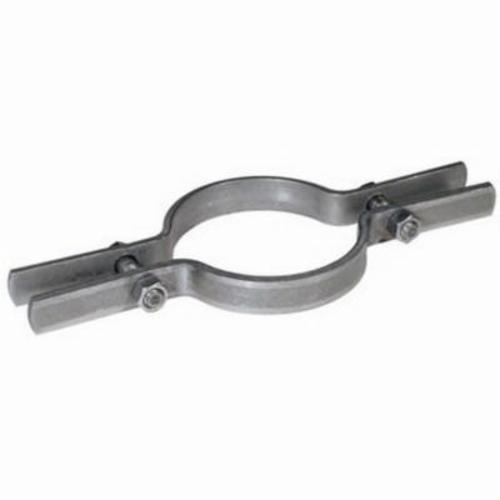

RISER CLAMP BLK 8-IN

PART GRH261-08.00
SUPPLIER Anvil®
SUPPLIER PART # 0500173638
Calculating price...
QUANTITY

About this item

Anvil® Riser Clamp, Series: FIG 261, 8 in Pipe, 5/8 in Bolt Dia, 2500 lb, 100 ft-lb, Carbon Steel, Black Oxide, Black, 18-1/2 in L x 1-1/2 in W, Domestic

A-A-1192A (Type 8)|ANSI/MSS SP-69 and MSS SP-58 (Type 8)|cULus Listed
Bolt Diameter 5/8 in
Color Black

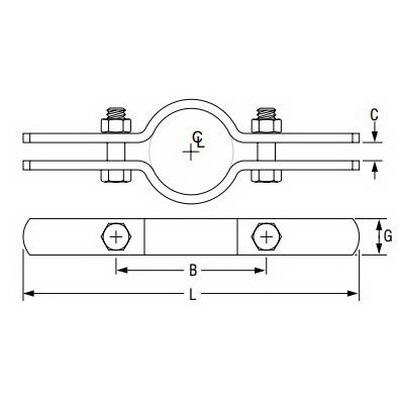

Dimensions 18-1/2 in L x 1-1/2 in W
Domestic/Import Domestic
Finish Black Oxide
Load Capacity 2500 lb
Material Carbon Steel
Pipe Size 8 in
Series FIG 261
Torque Rating 100 ft-lb
Brand Anvil®
Country of Origin US
  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards
  • Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
