PART GRHCT69-03.00

SUPPLIER Anvil®

SUPPLIER PART # 0500407002

Calculating price...

QUANTITY

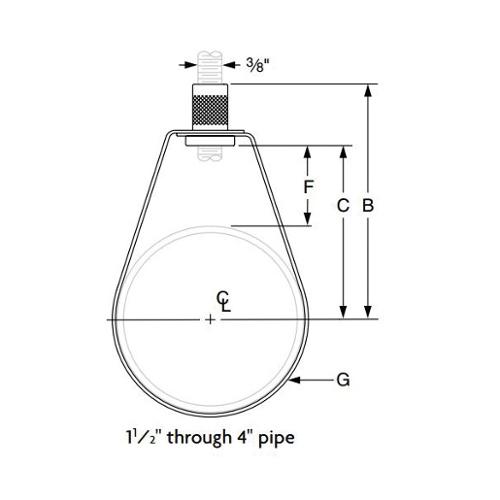

Anvil® Swivel Ring, Adjustable, Series: FIG CT-69, 3 in Pipe, 525 lb, 3/8 in Rod, Carbon Steel, Copper Plated, Domestic

ANSI/MSS SP-69/SP-58

Domestic/Import Domestic

Finish Copper Plated

Load Capacity 525 lb

Material Carbon Steel

Pipe Size 3 in

Rod Size 3/8 in

Series FIG CT-69

Type Adjustable

Brand Anvil®

Country of Origin US

Knurled swivel nut provides vertical adjustment after piping is in place.

Threads are countersunk so that they cannot become burred or damaged

Knurled swivel nut provides vertical adjustment after piping is in place

Captured swivel nut will not fall off
