T-19 2 CI Y-STR FLNGD 125SWP 200WOG

PART LEG 105-611
SUPPLIER LEGEND
SUPPLIER PART # 105-611
Calculating price...
QUANTITY

About this item

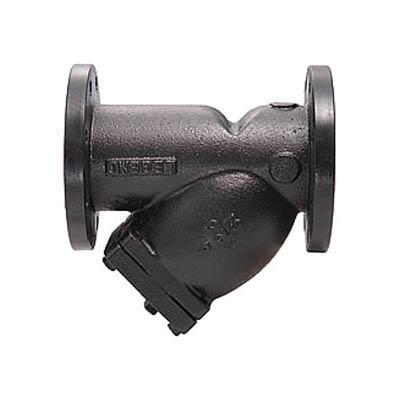

LEGEND Wye Strainer, Series: T-19, 2 in Nominal, Flanged, 7.86 in Length, 200 psi CWP/125 psi SWP, Cast Iron, Import

ANSI/ASME B16.1|ASTM A126 Class B|ISO Certified
Domestic/Import Import
End Style Flanged
Length 7.86 in
Material Cast Iron
Nominal Size 2 in
Pressure Rating 200 psi CWP/125 psi SWP
Series T-19
Brand LEGEND
Country of Origin CN
Warranty 5 Years
  • High-strength cast iron construction resists distortion from pipeline stresses
  • A larger straining area provides more effective single-pass debris filtration and entrapment, enhancing downstream component protection
  • Uni-directional flow
  • Can be installed horizontally or vertically, where the screen cap must be positioned downward, in the vertical position the media must flow downward
  • Equipped with a 304 stainless steel perforated strainer that is more rigid than traditional mesh strainers and more resistant to collapse under high-velocity flow or excess debris applications
  • Furnished with a square-head closure plug
  • Gasketed strainer cap is bolted to the body, for easy removal and servicing of the perforated strainer
  • 125 psi WSP at 340 deg F
  • Flanged end connections conform to ANSI/ASME B16.1, class 125/150
  • 304 stainless steel 1/16 in perforated strainer
