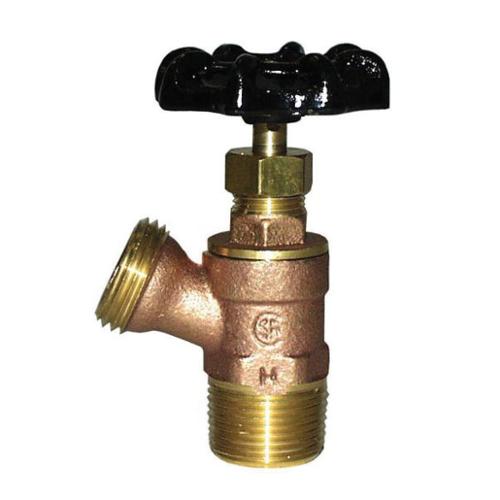

T-523 1/2 BOILER DRAIN COMPRESSION INLET

PART LEG 107-157

SUPPLIER LEGEND

SUPPLIER PART # 107-157

Calculating price...

QUANTITY

About this item

LEGEND Boiler Drain Valve, Series: T-523, 1/2 in Nominal, Compression End Style, 125 psi Pressure, Full Port, Media: Oil/Water, Handwheel Actuator, Brass Body, Cast Brass Trim, Buna-N® Rubber Seat Washer Softgoods

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

ANSI/ASME B1.20.1|CSA|ISO 9002 Certified and NSF 61-9 Certified

Actuator Type Handwheel

Body Material Brass

End Style Compression

Media Oil/Water

Nominal Size 1/2 in

Port Type Full

Pressure Rating 125 psi

Series T-523

Softgoods Material Buna-N® Rubber Seat Washer

Trim Material Cast Brass

Brand LEGEND

Warranty 5/25 Years

Full-pattern body, stem and handwheel construction is more durable than competitors' reduced-material

An electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components

Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs

Cast iron handle brass packing nut, NBR (Buna-N) rubber stem packing, stainless steel seat retaining screw, cadmium plated steel handle fastened

All 3/4 in GHT (garden hose) outlets accept 3/4 in hose-thread-mounted vacuum breakers

Cast brass body

Specification Sheet
