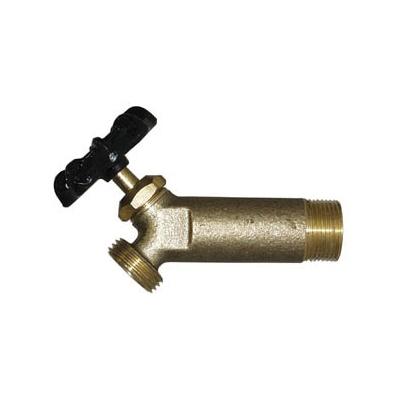

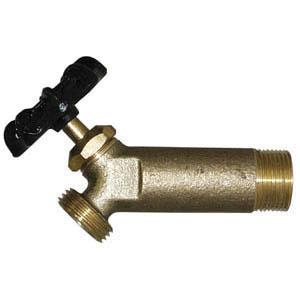

T-539 3/4 MIP X HOSE WATER HEATER DRAIN VALVE

PART LEG 107-192

SUPPLIER LEGEND

SUPPLIER PART # 107-192

Calculating price...

QUANTITY

About this item

LEGEND Heater Drain Valve, Series: T-539, 3/4 in Nominal, MNPT End Style, 125 psi Pressure, 180 deg F, Media: Water, Handwheel Actuator, 2.099 in Top to Inlet Center, Brass Body, Brass Trim, EPDM Seat Packing/Stainless Steel Washer Softgoods, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

ISO 9002 Certified|NSF 372

Actuator Type Handwheel

Body Material Brass

Domestic/Import Import

End Style MNPT

Media Water

Nominal Size 3/4 in

Pressure Rating 125 psi

Series T-539

Softgoods Material EPDM Seat Packing/Stainless Steel Washer

Temperature Rating 180 deg F

Top to Inlet Center 2.099 in

Trim Material Brass

Brand LEGEND

Country of Origin ID

Warranty 5/25 Years

Steel handle nut, cast iron handwheel , brass bonnet stem, seat screw, body, EPDM packing, seat packing, stainless steel washer

Specification Sheet

T-539 3/4 MIP X HOSE WATER HEATER DRAIN VALVE
