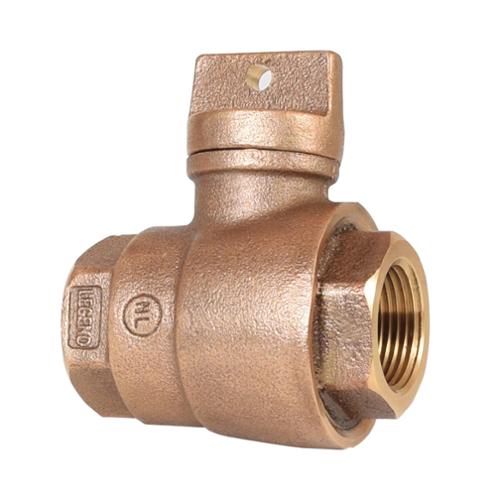

T-5500 1 FIPxFIP CURB STOP NO LEAD

PART LEG 314-255NL
SUPPLIER LEGEND
SUPPLIER PART # 314-255NL
Calculating price...
QUANTITY

About this item

LEGEND Curb Stop, Lead Free, Series: T-5500NL, 1 in Nominal, FNPT, 300 psi CWP, 100 deg F, Full Port, 3.41 in Inlet to Outlet Length, 2.78 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Nitrile Rubber Seat, Import

ANSI/ASME B1.20.1|ASTM B584 UNS C89836|AWWA C800|NSF 372|US Federal Public Law 111-380 (National Lead-free Plumbing Law)
Body Material Cast Bronze
Domestic/Import Import
End Style FNPT
Inlet to Outlet Length 3.41 in
Nominal Size 1 in
Port Type Full
Pressure Rating 300 psi CWP
Series T-5500NL
Softgoods Material Nitrile Rubber Seat
Temperature Rating 100 deg F
Top to Inlet Center 2.78 in
Trim Material Cast Bronze
Brand LEGEND
Country of Origin ID
  • Lead-free design is suitable for all no lead potable water installations, in full compliance of the lead-free plumbing law
  • 90 deg operation with enclosed operating head stops
  • Operating head has been drilled to accept stationary rod cotter pin attachment
  • Full-port, ball-and-seat design is superior to plug-type designs
  • Durable, PTFE-coated ball assures positive, bubble-tight shutoff, low torque operation and long service life
  • For underground water service installations only, to permit shutoff of the water supply, from the water main to the building
