Home Gaskets & Packing Gaskets PTFE Seals & Tapes TEFLON TAPE PINK 1/2 x 260

TEFLON TAPE PINK 1/2 x 260

PART MR 70796
SUPPLIER Cleanfit
SUPPLIER PART # 70796
Calculating price...
QUANTITY

About this item

Cleanfit Waterline Thread Seal Tape, 3-Wrap, 260 in Length, 1/2 in Width, 0.004 in Thickness, 1.5 g/cu-cm, -400 to 500 deg F, 4347 psi, PTFE, Red

Mill-Rose 3-Wrap Red Thread Sealing Tape is a PTFE tape designed specifically to seal lines carrying steam, water and other liquids. This is a full or maximum-density tape. Unlike most thread sealing tapes on the market, 3-Wrap tape has not been stretched during the manufacturing process. Stretching lowers the apparent density of tape by increasing its porosity. As stretched tape is more porous, more tape is required to obtain an effective seal.

UL Listed
Color Red
Density 1.5 g/cu-cm
Length 260 in
Material PTFE
Pressure Rating 4347 psi
Temperature Rating -400 to 500 deg F
Thickness 0.004 in
Type 3-Wrap
Width 1/2 in
Brand Cleanfit
  • 99 percent PTFE < 1 percent composition
  • 10 to 17 N/sq-mm tensile strength
  • Pink pigment color
  • > 100 percent elongation

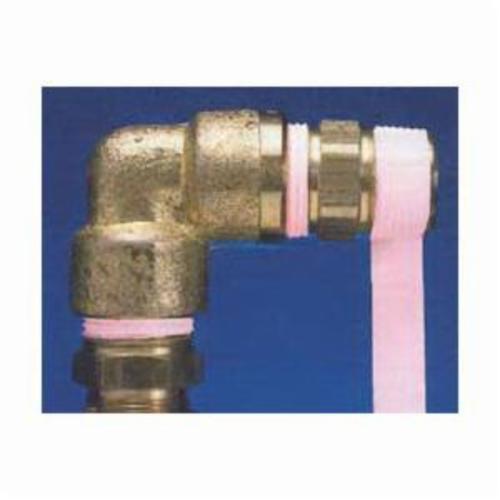

  • For pipe made from galvanized steel, iron, brass, copper, aluminum, stainless steel, polyethylene, polypropylene, PVC, CPVC, ABS and fiberglass
  • Pressure rating in tests conducted by an independent laboratory Mill-Rose 3-wrap red waterline seal tape was found to seal fittings carrying water at pressures up to 4347 psi or 30000 kPa when applied as per instructions
  • Note: pressure ratings are relative to the quality and torque of the fittings and the amount of tape used
  • Temperature range: -450 to 500 deg F PTFE is completely stable up to 500 deg F or 260 deg C, decomposition is slow up to 750 deg F or 400 deg C, decomposition will occur on contact with naked flames
