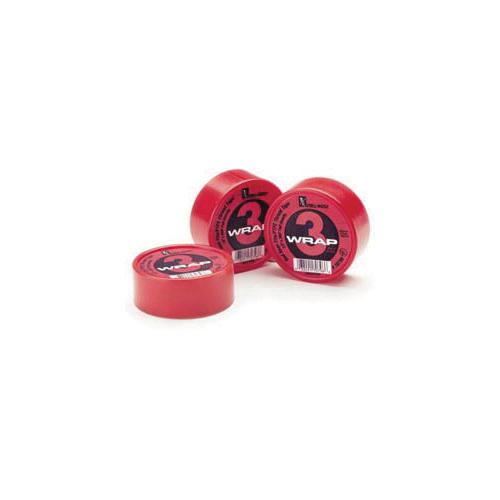

TEFLON TAPE PINK 3/4 x 260

PART MR 70798

SUPPLIER Cleanfit

SUPPLIER PART # 70798

Calculating price...

QUANTITY

About this item

Cleanfit Thread Sealing Tape, 3-Wrap Waterline, 260 in Roll Length, 3/4 in Width, 0.004 in Thickness, 1.5 g/cu-cm, -450 to 500 deg F, 4347 psi, PTFE, Red

Mill-Rose 3-Wrap Red Thread Sealing Tape is a PTFE tape designed specifically to seal lines carrying steam, water and other liquids. This is a full or maximum-density tape. Unlike most thread sealing tapes on the market, 3-Wrap tape has not been stretched during the manufacturing process. Stretching lowers the apparent density of tape by increasing its porosity. As stretched tape is more porous, more tape is required to obtain an effective seal.

UL Listed

Color Red

Density 1.5 g/cu-cm

Length 260 in Roll

Material PTFE

Pressure Rating 4347 psi

Temperature Rating -450 to 500 deg F

Thickness 0.004 in

Type 3-Wrap Waterline

Width 3/4 in

Brand Cleanfit

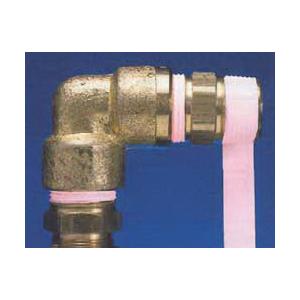

Just 3 wraps for leak-proof joints

Pink color pigment

Greater than 100% elongation

In tests conducted by an independent laboratory Mill-Rose 3-wrap red waterline seal tape was found to seal fittings carrying water at pressures up to 4347 psi or 30000kPa when applied as per instructions

-450 to 500 deg F (-268 to 260 deg C) PTFE is completely stable up to 500 deg F or 260 deg C

Decomposition is slow up to 750 deg F or 400 deg C

Decomposition will occur on contact with naked flames

10 to 17 N/mm-sq tensile strength

99% PTFE less than 1%
