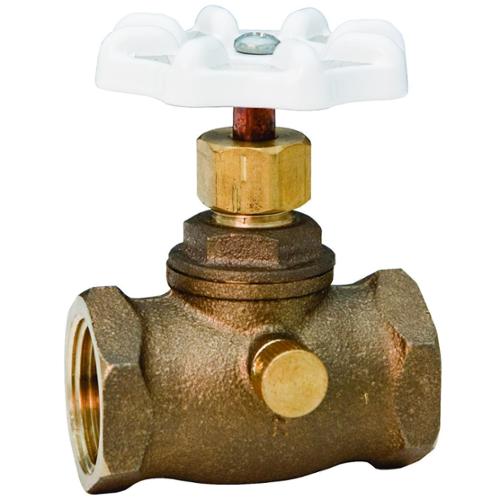

NIBCO® Stop and Waste Valve, Straight Pattern Multi-Turn, Series: 76-LF, 1/2 in Nominal, FNPT, 125 psi, 180 deg F, Media: Water, Handwheel Actuator, 2-3/16 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Silicon Bronze Body, Copper Alloy Trim, EPDM, Import
The NIBCO® stop and waste valve is a multi-purpose in-line shutoff valve for use in low-pressure, domestic water systems. The valve's screw-in bonnet offers a durable, pressure-tight seal. Constructed of high quality lead-free* dezincification-resistant (DZR) Performance Bronze® alloy per ASTM specifications, the lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
Certified compliant with California Health and Safety Code 116875 and Vermont Act 193 by IAPMO Research and Testing|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Actuator Type
Handwheel
Body Material
Silicon Bronze
Domestic/Import
Import
End Style
FNPT
Inlet to Outlet Length
2-3/16 in
Media
Water
Nominal Size
1/2 in
Pressure Rating
125 psi
Series
76-LF
Softgoods Material
EPDM
Temperature Rating
180 deg F
Top to Inlet Center
2-9/16 in
Trim Material
Copper Alloy
Type
Straight Pattern Multi-Turn
Brand
NIBCO®
Country of Origin
MX
EPDM seat discWhite handle for easy lead-free identificationNIBCO® double oval lead-free body markingMaximum temperature 180 deg F/ 82 deg CFIP x FIP end connections
