Home Pipe Flanges Van Stone Flanges PVC Van Stone Flanges V/S SOC FLG PVC S-80 10-IN

V/S SOC FLG PVC S-80 10-IN

PART PVC80F854-100
SUPPLIER Spears®
SUPPLIER PART # 854-100
Calculating price...
QUANTITY

About this item

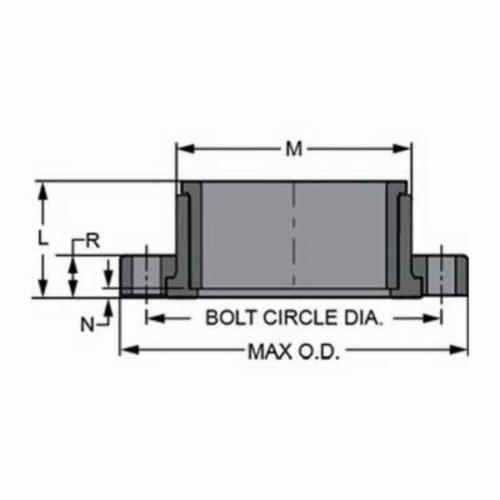

Spears® Flange, 2-Piece Van Stone Style, 10 in Nominal, 16 in Outside Dia, 14-1/4 in Bolt Circle, 12 Bolt Holes, Socket, 150 psi, 150 lb, SCH 40/STD/SCH 80/XH, 73 deg F, PVC, Gray, 5-11/16 in H, Domestic

ANSI/ASME B-16.5|NSF Approved|ASTM F-439|ASTM F-1498|ASTM D-1784(Cell Classification 23447-B)
Bolt Circle Diameter 14-1/4 in
Color Gray
Connection Type Socket
Dimensions 5-11/16 in H
Domestic/Import Domestic
Material PVC
Nominal Size 10 in
Number of Bolt Holes 12
Outside Diameter 16 in
Pressure Class 150 lb
Pressure Rating 150 psi
Schedule Rating SCH 40/STD/SCH 80/XH
Temperature Rating 73 deg F
Type 2-Piece Van Stone Style
Brand Spears®
Country of Origin US

There are currently no features for this product.
