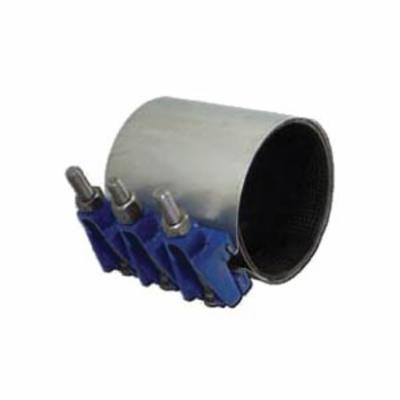

FULL CIRCLE REPAIR CLAMP 4 X 7-1/2

PART SB 226-00048007-000

SUPPLIER Smith-Blair

SUPPLIER PART # 226-00048007-000

Calculating price...

QUANTITY

About this item

Smith-Blair Full Circle® Repair Clamp, Single Band, Series 226, 4 in Pipe, Up to 300 psi, 4.74 to 5.14 in Outside Dia, 304 Stainless Steel, Flexi-Coat® Fusion Bonded Epoxy, 7-1/2 in W, -20 to 180 deg F

These clamps provide fast, economical means for repairing full circumferential breaks, holes, cracks and other types of damage.

ASTM A240 Band|ASTM A536 Lug|ASTM D2000 Gasket|ASTM A240 Bridge Plate|AWWA C230|AWWA C111/A21.11 Bolt/Long Bolt/Nut/Long Nut|ANSI/NSF 61-G/372|UL Listed

Dimensions 7-1/2 in W

Finish Flexi-Coat® Fusion Bonded Epoxy

Load Capacity Up to 300 psi

Material 304 Stainless Steel

Outside Diameter 4.74 to 5.14 in

Pipe Size 4 in

Series 226

Temperature Rating -20 to 180 deg F

Type Single Band

Brand Smith-Blair

Warranty 1 Year Limited

Removable lugs to allow installation in tight spaces

May be used to join plain end pipe of the same diameter

360 deg gasket seal

Flexi-Coat® epoxy finish for corrosion resistance

Range up to 0.4 in single band

Drop-in bolts for easier installation

Specification Sheet

Catalog

Instruction/Installation Manual
