BRACKET W/ SCREWS 14 in - 26 in

PART SIOUX 523-2404

SUPPLIER Sioux Chief

SUPPLIER PART # 523-2404

Calculating price...

QUANTITY

About this item

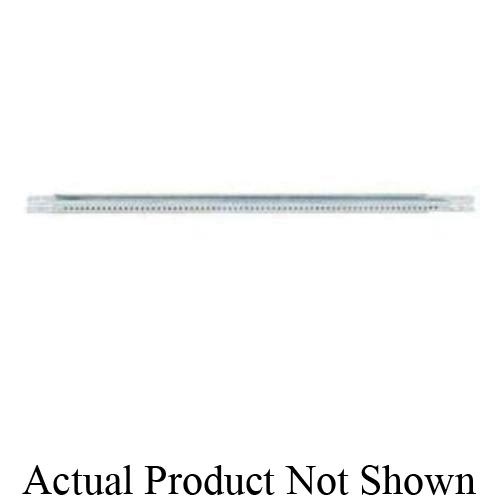

Sioux Chief PowerBar™ Universal Bracket, Series: 523-24, Steel, Zinc Plated, 0.529 in H x 0.602 in W, Domestic

Sioux Chief 523 Series PowerBar universal bracketing system shall be used where necessary for supporting pipe or stub outs. Bracket shall be corrosion resistant, adjust telescopically from 14 to 26 in, and have dual fastening tabs on each end. Pilot holes for number 6 to 10 screws shall be provided on three sides of the bracket. System shall include screws for fastening tabs, and optional adjustable channel clamps with elastomer inserts for fastening any pipe, tube, cable, etc. System shall be approved for use with copper tube, CPVC tube, PEX or PB tube, steel pipe, CSST lines, plastic or steel conduit, and low voltage DataCom cable. System shall be UV resistant.

IAPMO Certified|UPC Listed

Dimensions 0.529 in H x 0.602 in W

Domestic/Import Domestic

Finish Zinc Plated

Material Steel

Series 523-24

Brand Sioux Chief

Country of Origin US

Galvanized steel bracket and tough plastic clamp are strong and support tube or pipe without bowing

Available with one, two or three touch down clamp pre-loaded to reduce installation time

TPE (black clamp), PVDF (orange clamp) clamp insert

Adjust bracket telescopically to desired L (bracket must have a minimum center overlap of 2 in)

Fasten all four tabs to building member, slide channel clamp (if applicable) to desired location along bracket

Place conduit between clamp posts, and engage clamp bridge, ratchet bridge of channel clamp down over both posts evenly

It is permissible to use one bracket section and fasten directly through channel

Clamps 1/4 in - 1 in CTS tube and 1/8 in - 1 in Sch. 40 pipe

Specification Sheet

Instruction/Installation Manual

Video Link
