TRAP PRIMER VALVE BRASS PLATED

PART SIOUX 695-01
SUPPLIER Sioux Chief
SUPPLIER PART # 695-01
Calculating price...
QUANTITY

About this item

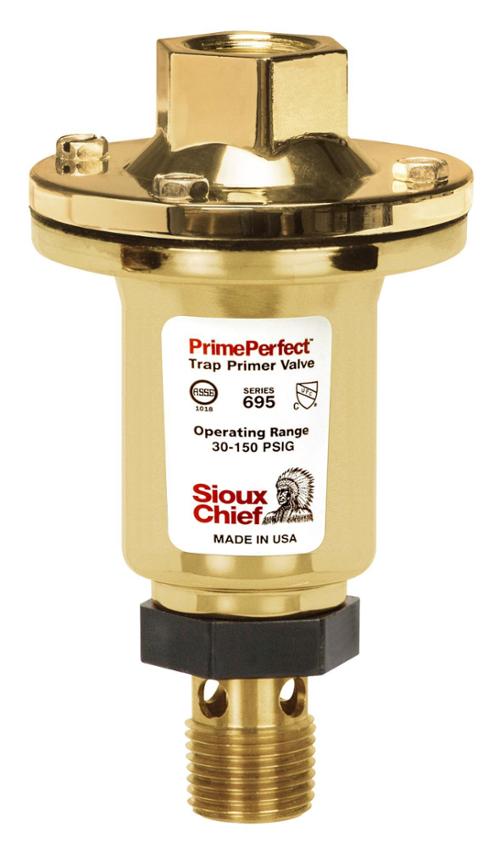

Sioux Chief PrimePerfect™ Trap Prime valve, Automatic, Series: 695, Brass Plated, Domestic

Where replenishment of water in floor drain traps is required; trap primer valves shall be 1/2 in FIP inlet x 1/2 in MIP outlet, automatic trap primer valves which activate with a 10 PSIG pressure drop between 30-150 PSIG. Water release shall be factory set. Trap primer valve shall have large port openings and a noncorrosive brass finish. Must be UPC/IAPMO listed, and ASSE certified to the ASSE 1018 standard.

ASSE 1018|UPC/IAPMO
Domestic/Import Domestic
Finish Brass Plated
Series 695
Type Automatic
Brand Sioux Chief
Country of Origin US
  • For use in accessible locations only
  • Automatically activates to replenish evaporated water in floor drain traps to prevent the escape of sewer gases
  • Large port openings in debris screen prevent clogging from sediment and debris
  • Activates with a 10 psi pressure drop at operating pressure of 30 to 150 psi
  • Water release is factory set 0.25 oz per activation, so no field adjustment is necessary
  • Single trap primer can service up to eight traps using splitter and distributors
  • DO NOT use thread sealant compound
