Home Toilets, Urinals & Parts Flush & Fill Valves Manual Flush Valves 186 RYL F/V 0.125 GPF 3/4 IP 3/4 VB

186 RYL F/V 0.125 GPF 3/4 IP 3/4 VB

PART SLO 3912633
SUPPLIER Sloan®
SUPPLIER PART # 3912633
Calculating price...
QUANTITY

About this item

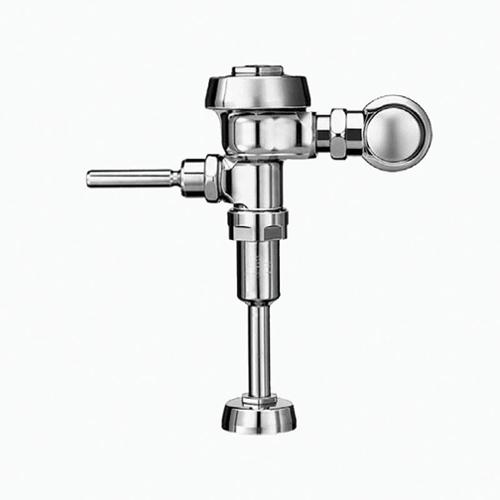

Sloan®, 3912633, Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

ADA Compliant|BAA Compliant|cUPC Listed|cUPC Green Certified|Satisfies LEED Credits|WaterSense Listed
Connection Location Top Spud
Domestic/Import Domestic
Finish/Color Polished Chrome
Fixture Type Urinal
Flush Rate 0.125 gpf
Handle Type Non-Hold Open Oscillating
Inlet Size 3/4 in IPS
Material Semi-Red Brass
Pressure Rating 15 to 80 psi
Rough-In Size 11-1/2 in
Series 186
Spud Coupling 3/4 in
Type Single-Flush
Valve Design Diaphragm
Brand Sloan®
Country of Origin US
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal-resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
