Home Valves & Actuators Check Valves & Backflow Preventers Ball Check Valves 1-1/4 PVC TU BALL CHK VALVE SOC/FPT EPDM

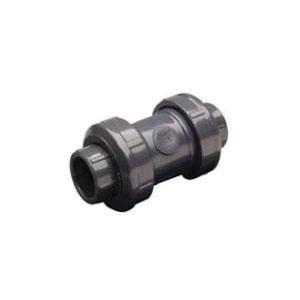

1-1/4 PVC TU BALL CHK VALVE SOC/FPT EPDM

PART SPR 2229-012
SUPPLIER Spears®
SUPPLIER PART # 2229-012
Calculating price...
QUANTITY

About this item

Spears® Ball Check Valve, True Union Regular Style, 1-1/4 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 7 in Inlet to Outlet Length, PVC Ball, PVC Body, EPDM Softgoods, Gray, 3-11/16 in H, Domestic

All thermoplastic check valves shall be True Union Ball type constructed from PVC Type I, ASTM D1784 Cell Classification 12454 or CPVC Type IV, ASTM D1784 Cell Classification 23447. All O-rings shall be EPDM or FKM. All valve union nuts shall have Buttress threads. All valve components shall be replaceable. All EPDM valves shall be certified by NSF International for use in potable water service. All 1/2 to 2 in valves shall be pressure rated at 235 psi and all 2-1/2 to 6 in and all flanged valves shall be pressure rated at 150 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company.

ASTM D1784/F1970|NSF Approved
Ball Material PVC
Body Material PVC
Color Gray
Dimensions 3-11/16 in H
Domestic/Import Domestic
End Style Socket/FNPT
Inlet to Outlet Length 7 in
Media Water
Nominal Size 1-1/4 in
Pressure Rating 235 psi
Softgoods Material EPDM
Temperature Rating 73 deg F
Type True Union Regular Style
Brand Spears®
Country of Origin US
  • Chemical and corrosion resistant PVC construction
  • Strong, buttress thread union nuts
  • Fully serviceable, replaceable components
  • Uses standard O-Ring seat
  • Suitable for either horizontal or vertical installations and vacuum service
  • Assembled with silicone free, water soluble lubricant
  • EPDM O-ring
