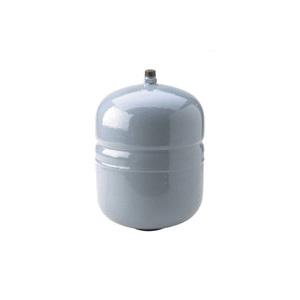

Expansion Tank 3/4" MNPT 4.5 gal

PART WILK XT-18

SUPPLIER Zurn® Wilkins

SUPPLIER PART # XT-18

Calculating price...

QUANTITY

About this item

Zurn® Wilkins Thermal Expansion Tank, Series: XT Series, 4.5 gal Tank Volume, Acceptance Volume: 2.4 gal, 150 psi, ASME Yes/No: No, 11 in Dia, 13-1/2 in Height, Carbon Steel, 40 psi Pre-Pressure Rating, 200 deg F Maximum Temperature, MNPT, 3/4 in, Epoxy Coated

The Zurn® Wilkins XT Thermal Expansion Tank is designed for installation on potable water lines between the backflow preventer or pressure reducing valve and the water heater to protect against water thermal expansion.

ANSI B1.20.1|FDA Approved|IAPMO Listed|NSF/ANSI 61/372|UPC Listed

Acceptance Volume 2.4 gal

ASME Yes/No No

Connection Size 3/4 in

Connection Type MNPT

Diameter 11 in

Finish Epoxy Coated

Height 13-1/2 in

Material Carbon Steel

Maximum Temperature 200 deg F

Pre-Pressure Rating 40 psi

Pressure Rating 150 psi

Series XT Series

Tank Volume 4.5 gal

Brand Zurn® Wilkins

Country of Origin TW

Warranty 5 Years

Diaphragm style tank for residential applications

Steel shell protected with polypropylene liner

Pre-charge is field adjustable

Instruction/Installation Manual

Specification Sheet

Video Link
