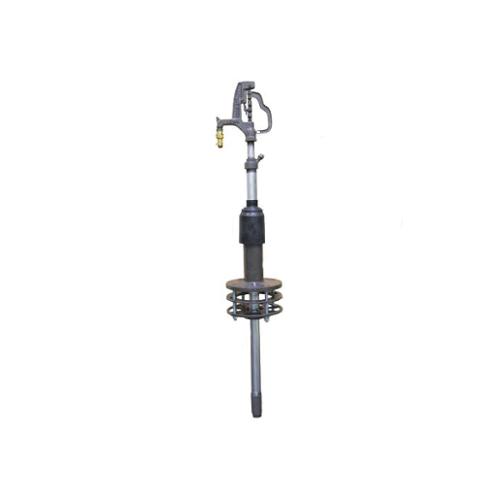

Woodford® Complete Sanitary Roof Hydrant, Freezeless, Series: Model SRH-MS, 3/4 in Nominal, FNPT, 61 in Overall Length, Self-Closing Shut-Off, 100 psi, 120 deg F, Domestic

The Woodford®, ASSE 1057 listed, SRH Roof Hydrant is intended for irrigation purposes and to provide water, in any weather condition, on commercial building roofs. Applications include window washing, cleaning of condenser coils, cooling towers, green roofs and other types of roof top equipment. The SRH is backflow protected with a field testable ASSE 1052 double check backflow preventer. The SRH does not require a drain line from the valve body located inside the building. The SRH-MS with Mounting System allows for installation flexibility. It is not necessary to install hydrant when hydrant support is mounted to the roof. The hydrant support utilizes a 3 diameter opening that allows the hydrant to be installed or easily removed at a later time. All necessary mounting hardware for proper installation on a commercial roof is supplied, including a 2 degree shim for pitch adjustment.

ADA Compliant|ASSE 1052
