Home Plumbing Hardware Plumbing Drains & Traps Grease Traps GREASEPTOR SIZE 300 2 INCH

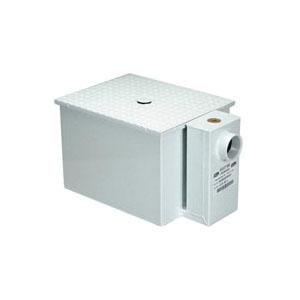

GREASEPTOR SIZE 300 2 INCH

PART ZD Z1170-300
SUPPLIER Zurn®
SUPPLIER PART # Z1170-300-3IP
Calculating price...
QUANTITY

About this item

Zurn® Grease Interceptor, Series: Z1170, #300 Nominal, 3 in Inlet Connection, 3 in Outlet, 20 lb, 10 gpm, NPT, Fabricated Steel, White, 25-1/8 in L x 14 in W x 11-3/4 in H

The Z1170 Grease Interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.
Capacity 20 lb
Color White
Connection Type Thread
Dimensions 25-1/8 in L x 14 in W x 11-3/4 in H
Flow Rate 10 gpm
Inlet Connection 3 in
Material Fabricated Steel
Nominal Size #300
Outlet Connection 3 in
Series Z1170
Brand Zurn®
  • Above or below grade applications
