GREASE INTERCEPTOR SIZE 500 20 GPM 3 IP

PART ZD Z1170-500-3IP

SUPPLIER Zurn®

SUPPLIER PART # Z1170-500-3IP

Calculating price...

QUANTITY

About this item

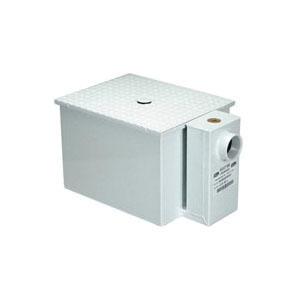

Zurn® Grease Interceptor, Series: Z1170, #500 Nominal, 3 in Inlet Connection, 3 in Outlet, 40 lb, 20 gpm, NPT, Fabricated Steel, White, 30 in L x 17-1/4 in W x 15 in H

The Z1170 Grease Interceptor is an acid resistant coated interior and exterior fabricated steel grease interceptor, PDI Rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.

PDI Certified

Capacity 40 lb

Color White

Connection Type Thread

Dimensions 30 in L x 17-1/4 in W x 15 in H

Flow Rate 20 gpm

Inlet Connection 3 in

Material Fabricated Steel

Nominal Size #500

Outlet Connection 3 in

Series Z1170

Brand Zurn®

Above or below grade applications

Instruction/Installation Manual

Specification Sheet
