E284 SEWAGE PUMP 1HP CI 230V NON-AUTO 2 DI

PART ZOE 284-0004
SUPPLIER Zoeller®
SUPPLIER PART # 284-0004
Calculating price...
QUANTITY

About this item

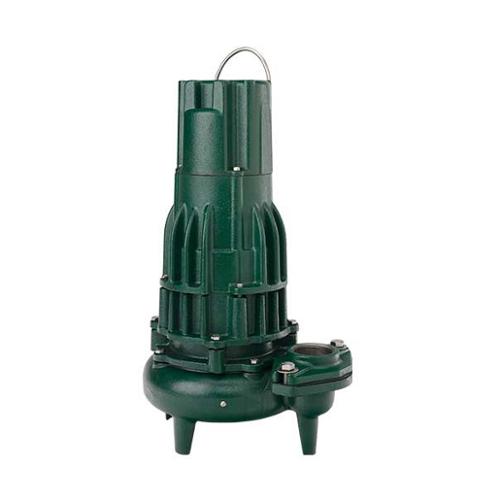

Zoeller® Submersible Sewage Pump, 1-Seal, Series: Waste-Mate 280, 179 gpm, 2 or 3 in FNPT Outlet, 35 ft Maximum Head, 1 hp, 230 VAC, 8.9 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 13-9/16 in W x 19-9/16 in H Dimensions

Heavy duty construction, oversized bearings and balanced non-clogging vortex impellers allow these pumps to stand up to the highest heads and maximum flows. Using Zoeller® cool run design, we added fins to these pumps, lowering operating temperatures. The corrosion resistant, epoxy powder coated finish and hermetically sealed, oil- filled motor add up to a long lasting, trouble-free product.

cCSAus Certified|SSPMA Certified|UL Listed
Amperage Rating 8.9 A
Bearing Type Ball
Cord Type 3-Wire Neoprene
Dimensions 13-9/16 in W x 19-9/16 in H
Flow Rate 179 gpm
Frequency Rating 60 Hz
Horsepower 1 hp
Impeller Type Non-Clogging Vortex
Material Cast Iron
Maximum Head 35 ft
Motor Speed 1725 rpm
Outlet Size 2 or 3 in FNPT
Phase 1
Series Waste-Mate 280
Temperature Rating 130 deg F
Type 1-Seal
Voltage Rating 230 VAC
Brand Zoeller®
Country of Origin US
  • Durable, cast iron constructed switch case, motor and pump housing, base and impeller
  • No sheet metal parts to rust or corrode
  • All cast iron class 30 30000 lb tensile strength
  • Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
  • Shaft seal - carbon and ceramic rotary face seal, with stainless steel wetted parts
  • SAE 1117 carbon steel motor shaft (single seal models)
  • Upper and lower ball bearing running in bath of oil
  • Oil filled, hermetically-sealed, automatic reset thermal overload protected motor (1 ph and auto 3 ph)
  • All models pass 2 in spherical solids
  • Corrosion-resistant, powder coated epoxy finish
  • Non-automatic operation
  • 15 ft L cord
  • Permanent split capacitor or 3 ph motor
  • Class B insulation
